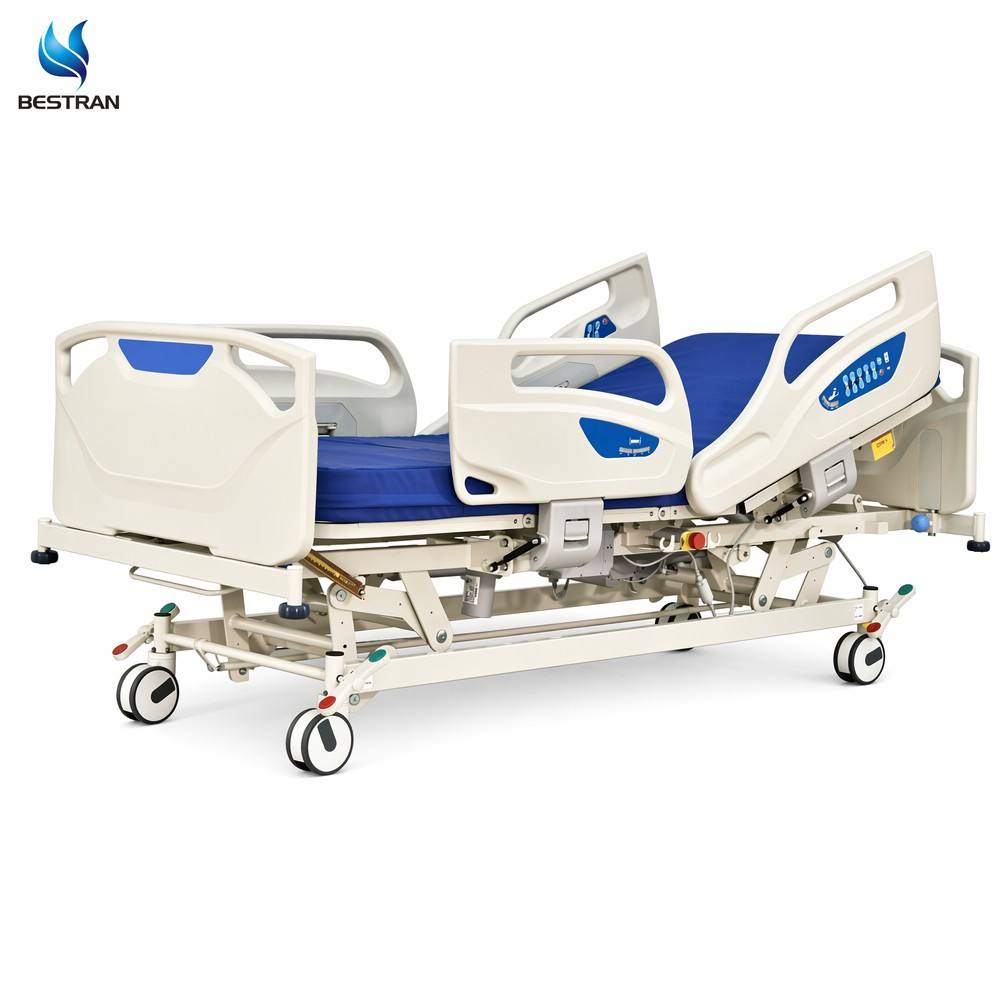

5-Function electric hospital bed

Features:

1) Overallsize (L*W*H):2140*1070*450-770mm, platform size:1950*900mm

2) Frame: steel, treated by sand-balsting and electrostatic powder-coating

3) Bedboard: steel material

4) Headboard/footboard:ABS,Detachable

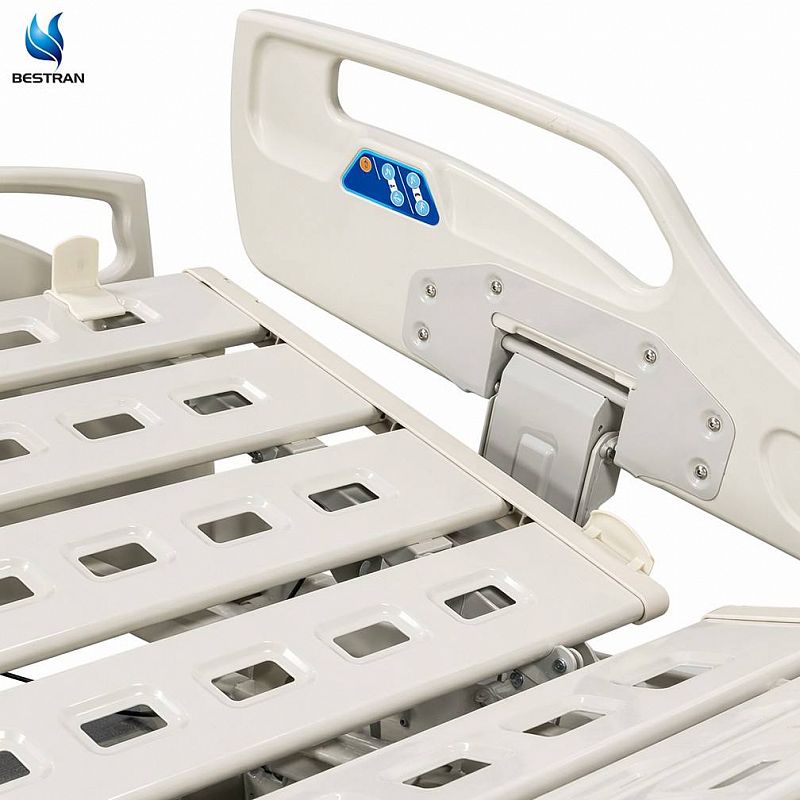

5) Side rail: Detachable, ABS

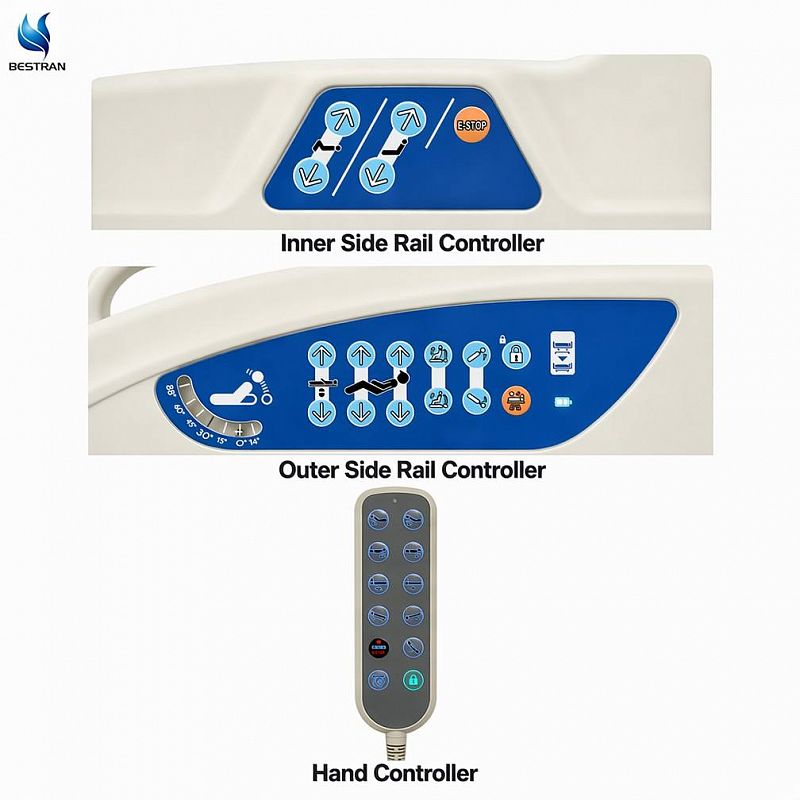

6) Rail controller: embedded on side rail at head side, with electric CPR button, Battery power display and angle indicator .

7) Remote handset controller 1pc

8) Motor: Timotion from Taiwan,with backup batteries

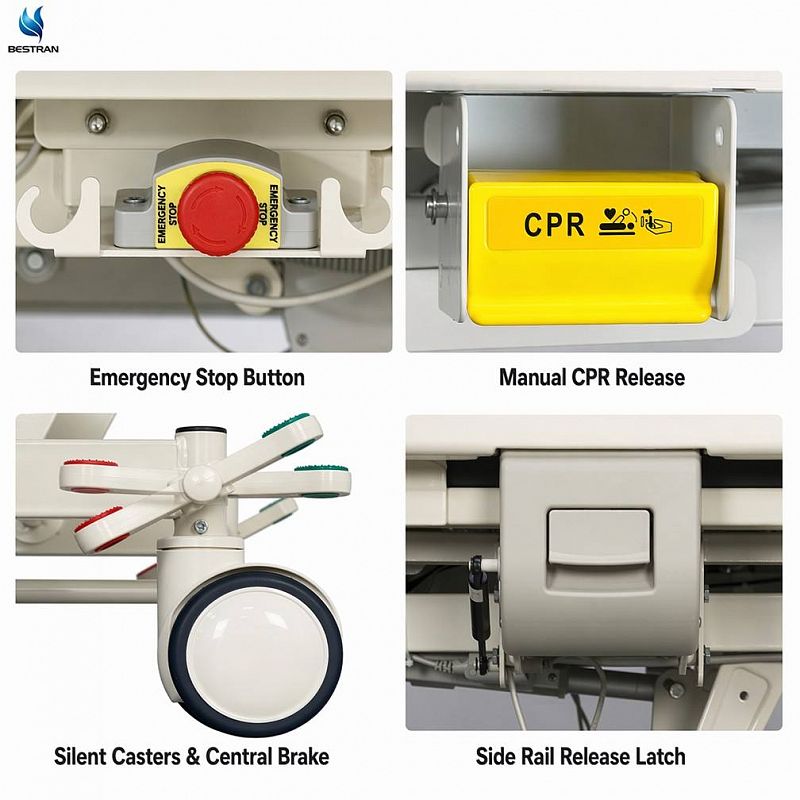

9) Manual CPR handles at head side

10) Castors: four Central-controlled silent wheels, φ125mm;

11)Weight load: static safe load 400kg, dynamic safe load: 170kg

12)Standard accessories:I.V pole 1pc, IV pole holes 4pcs, Drainage hooks 2pcs,

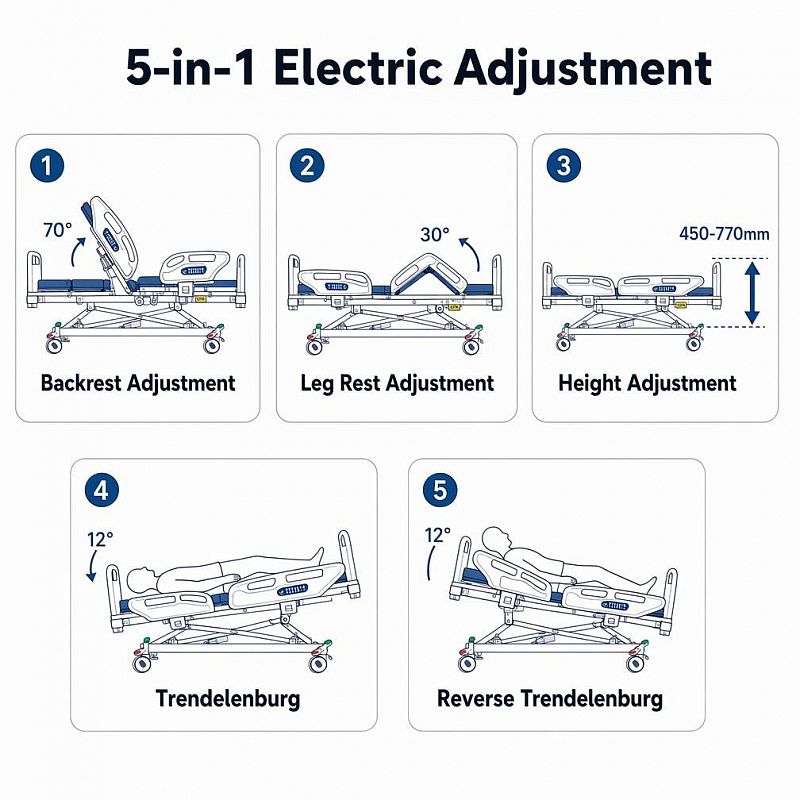

5-function:

1) Backrest max upward angle: 70°

2) Footrest max upward angle: 30°

3) Height adjustment: 450-770mm

4) Trendelenburg: 12°

5)Anti-trendelenburg: 12°
